Burks # 320CS7M-AB-01 Pump and Motor - 2 HP 208-230/460 Volts

Burks Pump 320CS7M-AB-01

Burks # 320CS7M-AB-01

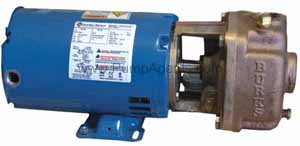

Burks catalog # 320CS7M-AB-01, Turbine Pump and Motor unit. All BRONZE Construction. Close Coupled to a 2 Horsepower, 3450 RPM, 208-230/460 Volts, 60 Hz, 3 Phase, ODP Motor. Ports are 1-1/4 Inch NPT Inlet, 1 Inch NPT Outlet.

Price : $ 2721.97

Qty :

4 weeks (0 in stock)



Product Information :

Features :


Parts and Accessories for Burks model 320CS7M-AB-01


Seal Kit :

Catalog # SK8991-9791, Seal Kit, BUNA Nitrile for all CS5M, CS6M, CS7M, CS8M, CS9M Series Turbine Pumps. Includes P/N # 8991-1 - Mechanical Seal - Buna N, P/N # 9791 - Casing O-Ring - Buna N, P/N # 04231 - Suction Sleeve Buna N

Price: $ 91.05

Qty :

Can Ship : Same Day (2 in stock)

Applications

MATERIALS OF CONSTRUCTION Frame Bronze Case Bronze Raceway Bronze Impeller Bronze Monel Blades Shaft 303 Stainless Steel Shaft Seal CarbonCeramic / S. Steel / BunaN MAXIMUM OPERATING CONDITIONS TEMPERATURE For Standard BunaN Seal 225F 107C INLET PRESSURE 100 PSI 689kPa CASING WORKING PRESSURE 250 PSI 1724kPa VISCOSITY 200 SSU FEATURES • SelfPriming • Compact, Spacesaving size • No coupling eliminates misalignment problels • Dependable carbon/ceramic mechanical shaft seal for temperatures to 225F 107C. • Bronze impeller with Monel blades the only moving part • Bronze raceway with castin vortex pockets will not vapor lock • 303 Stainless Steel pump shaft • Easy to service • Every pump factory tested • Available Bronze fitted, All Bronze, Stainless Steel

BURKS is the only turbine pump with LifeLok External Impeller Adjustment feature that allows readjustment of impeller without disturbing piping, disassembling pump or replacing parts. Gives up to 40 longer service life than turbine pumps of other designs.
