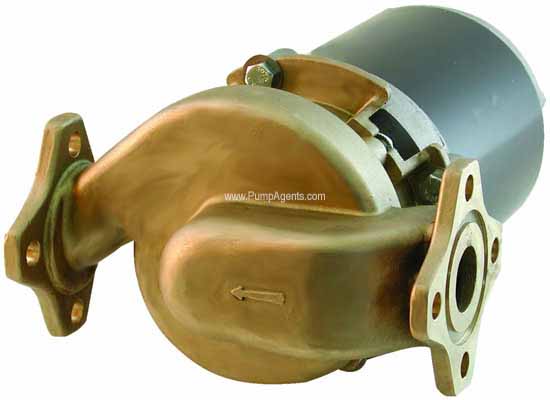

AMT # 5720-97 Bronze Inline Circulator Pump and Motor 1/4 HP

AMT Pump 5720-97

AMT # 5720-97

AMT catalog # 5720-97, Inline Circulator Pump and Motor unit. Bronze Construction. Pump is Close Coupled to a 1/4 Horsepower, 115 Volts, Single Phase, ODP (Open Drip Proof) Motor..

Price : $ 727.40

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 5720-97 is a Bronze Inline Circulator Pump and Motor unit with a Steel Stl Shaft Seal, coupled to a 1/4 Horsepower, 115 Volts, ODP Open Drip Proof Motor. Patterson/AMT inline circulator pumps are designed for continuous duty industrial/commercial applications. Pumps are designed for liquid circulation in HVAC and industrial/commercial systems. Pumps are powered by a single phase 115V 56J NEMA frame electric motor with percent -14 NPSM conduit connection. Pump is equipped with precision lapped mechanical shaft seal to reduce the likelihood of leakage, O-ring sealed casing and a stainless steel closed impeller. Liquid temperature range is 40 degrees to 200 degrees F (4 degrees to 93 degrees C). Liquid viscosity and specific gravity must be close to water; 31 SSU and 1.00. Maximum casing pressure is 150 psi. Pump shipped without NPT connection flanges or flange gaskets. Connection flange kits must be ordered separately. All 115V motors are equipped with automatic thermal protection. Check motor wiring before putting unit into service (see motor nameplate for specific wiring diagram). These are manual units, no controls are supplied. All units are for use with non-flammable, non-abrasive liquids, compatible with pump component materials.

Features :

Pump Body:
Bronze
Shaft Seal:
Stl Stl Shaft Seal
Motor Specs :
1/4 Horsepower, 115 Volts, Single Phase, ODP (Open Drip Proof).

Product Specs :

Maximum Temperature 225 degrees F


Parts and Accessories for AMT model 5720-97


Seal Kit :

Catalog # 5700-301-KT, Seal Kit EPDM for 570/571/572 Pumps

Price: $ 89.10

Qty :

Can Ship : 2 Weeks (0 in stock)


Impeller :

Catalog # 5701-010-00, Impeller Xb Mbv

Price: $ 207.36

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1626-096-00, Motor, 1/4 Horsepower, 1725 RPM, 115 Volts, 1 Phase, ODP Open Drip Proof, 60 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 396.90

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 572097 Inline Circulator Pumps are designed for industrial/ commercial systems. Pumps are available in a variety of material configurations to meet your specifications. All models are powered by a single phase 115 VAC ODP 56J NEMA frame 1/4 HP electric motor with 1/214 NPSM conduit connection. Direct coupled design eliminates stub shaft, oiled bearing and coupling, reducing maintenance. Pumps are interchangeable with other manufacturers.
