AMT # 5497-98 Stainless Steel Centrifugal Pump and Motor 3 HP

AMT Pump 5497-98

AMT # 5497-98

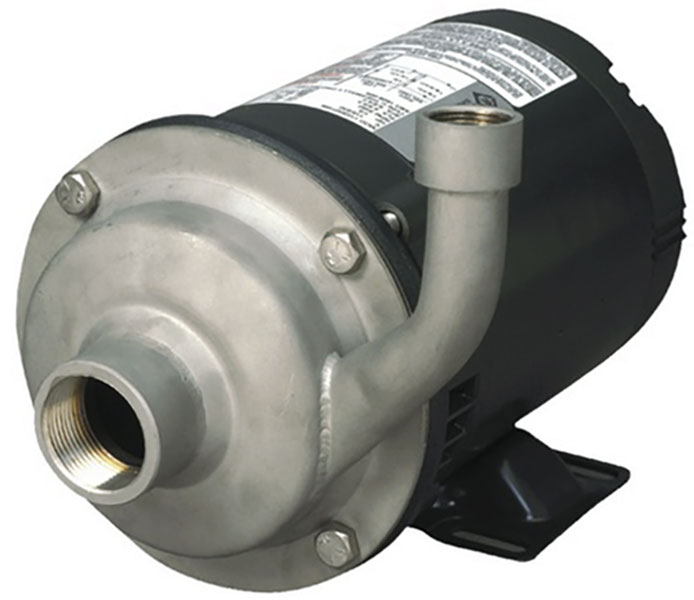

AMT catalog # 5497-98, Stainless Steel Centrifugal Pump and Motor unit. Stainless Steel Construction with Stainless Steel Impeller and Viton Shaft Seal. Pump is Close Coupled to a 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 2 inch x 1-1/2 inch NPT Ports.

Price : $ 887.33

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 5497-98 is a Stainless Steel Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Viton Shaft Seal, 2 inch x 1-1/2 inch NPT Ports, coupled to a 3 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These centrifugal pumps are non-self priming (gravity feed) units designed for continuous duty liquid transfer and re-circulation. Pumps are intended for use with clear, non-abrasive, non-flammable liquids compatible with pump component materials. Handle liquids from 40̊ to 200̊ F (4̊ to 93̊ C) with standard Viton seals; 40̊ to 180̊ F (4̊ to 82̊ C) with optional Buna-N seals. Wetted parts include: Stainless Steel impeller and impeller nut; Stainless Steel casing and casing cover; Type 21 mechanical shaft seal comprised of carbon, ceramic and stainless steel components; and Viton seals (Buna-N seals Optional). High head units also include wetted Stainless Steel motor shaft. The discharge port on all models can be rotated 360̊ in 90̊ increments to accommodate specific applications. Motorized units are direct coupled to a 3450 RPM motor. All models are manual mode and require field wiring, no controls are supplied. Check motor wiring before putting unit into operation (see motors nameplate for specific wiring diagram).

Features :

Pump Body:
Stainless Steel
Impeller:
Stainless Steel
Shaft Seal:
Viton Shaft Seal
Port Size:
2 inch x 1-1/2 inch NPT Ports.
Motor Specs :
3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Stainless Steel Construction

Viton Mechanical Seal and O-ring

Investment Cast Stainless Steel Impeller

Cast Iron Motor Adapter Provides Rigid Mounting

AeroSpace Fusion Welding

Stainless Steel Motor Shaft and Hardware

NEMA Base Mounted Motors

Maximum Working Pressure 150 PSI

Maximum Temperature 200 degrees F


Parts and Accessories for AMT model 5497-98


Seal Kit :

Catalog # 5470-300-91, Seal Rebuild Kit Vitn/Ceramic - all Seals

Price: $ 64.80

Qty :

Can Ship : 2 Weeks (0 in stock)


Impeller :

Catalog # 5494-010-98, Impeller Xss 3.00HP 3PH, Stainless Steel

Price: $ 257.58

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-162-98, Mechanical Seal, Viton, Type 21, size 3/4 Inch

Price: $ 48.60

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 5490-001-98, Casing Xss 2.00INX1.50IN, with 2 inch x 1-1/2 inch NPT Ports

Price: $ 379.08

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1627-312-00, Motor, 3 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 777.60

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 549798 Stainless Steel Solids Handling End Suction Centrifugal pumps are designed for high flow and high pressure applications including chemical processing, liquid transfer, cooling, pressure boosting, circulating, dirty water and applications requiring contaminant free pumping. Constructed of rugged deep drawn stainless steel for durability and corrosion resistance. Investment cast stainless steel closed impeller for enhanced performance, high efficiencies and handles a maximum of 1/8 Inch diameter solids. All models include Viton Type 21 mechanical seals and Orings which offer a broad range of chemical compatibility. Cast iron motor adapter provides a positive and rigid mounting to motor. Pumps are not selfpriming and require flooded suction.
