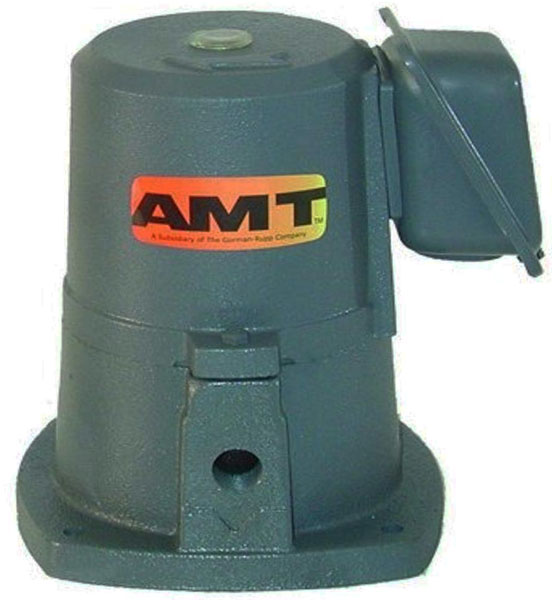

AMT # 5340-95 Cast Iron Coolant Pump and Motor 1/8 HP

AMT Pump 5340-95

AMT # 5340-95

AMT catalog # 5340-95, Coolant Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 1/8 Horsepower, 115/230 Volts, Single Phase, Motor. 3/8 Inches NPT Ports.

Price : $ 227.13

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 5340-95 is a Cast Iron Coolant Pump and Motor unit with a Carbon/Ceramic Shaft Seal, 3/8 Inches NPT Ports, coupled to a 1/8 Horsepower, 115/230 Volts Motor. COOLANT PUMPS. These coolant pumps are the ideal replacement pumps for installation on machine tools. All units have cast iron construction, and feature stainless steel impellers. Pumps are equipped with a 3450 RPM motor with permanently lubricated bearings They handle liquids with a maximum specific gravity of 1.0, maximum viscosity of 550 SSU, and maximum temperature of 180 degrees F. For use with non-flammable liquids compatible with pump component materials. The motor on these pumps is not intended to be submersed in liquid.

Features :

Pump Body:
Cast Iron
Shaft Seal:
Carbon/Ceramic Shaft Seal
Port Size:
3/8 Inches NPT Ports.
Motor Specs :
1/8 Horsepower, 115/230 Volts, Single Phase.

Product Specs :

Fully interchangeable with units furnished on most imported machine tools

2 pole, 3450 rpm, totally enclosed motors

Single or three phase motors

Stainless steel semi-open impeller

Cast iron construction

Maximum temperature 180 degrees f


Parts and Accessories for AMT model 5340-95


Shaft Seal :

Catalog # 5340-300-00, Lip Seal -Buna N

Price: $ 12.96

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 534095 Interchangeable Coolant/Oil pumps are dependable, economical replacement pumps equivalent to units supplied with both domestic and foreign made machine tools such as Fuji, Mitsubishi, Toshiba, Hitachi and many others. These pumps are designed for the circulation and spraying of coolants and cutting oils. Pumps are available with a stainless steel impeller for added corrosion/erosion resistance and durability. 1/8 & 1/4 HP models are available in 115/230 VAC, 60 Hz single phase and 230/460 VAC, 50/60 Hz three phase. Motors are Totally Enclosed with sealed bearings and operate at 3450 RPM. Pumps feature semiopen impellers that are ideal for handling some solids and fine contaminants.
