AMT # 4294-98 Stainless Steel Self-Priming Pump and Motor 1/3 HP

AMT Pump 4294-98

AMT # 4294-98

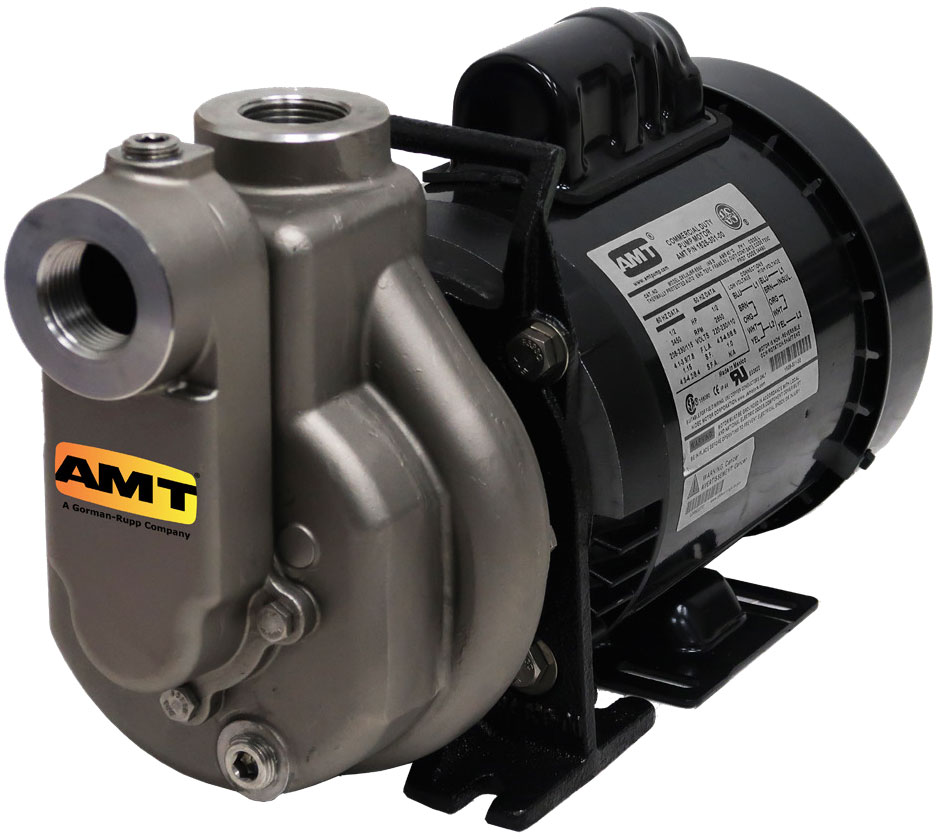

AMT catalog # 4294-98, Stainless Steel Self-Priming Pump and Motor unit. Stn. Steel Construction with Stainless Steel Impeller and Viton/SS Shaft Seal. Pump is Close Coupled to a 1/3 Horsepower, 115/230 Volts, Single Phase, ODP (Open Drip Proof), NEMA 56J Frame Electric Motor. 1 inch x 1 inch NPT Ports.

Price : $ 975.44

Qty :

Same Day (1 in stock)

Click Here for PARTS



Product Information :

The AMT 4294-98 is a Stainless Steel Self-Priming Pump and Motor unit with a Stainless Steel Impeller, Viton/SS Shaft Seal, 1 inch x 1 inch NPT Ports, coupled to a 1/3 Horsepower, 115/230 Volts, ODP Open Drip Proof, NEMA 56J frame electric Motor. These stainless steel with Viton seal pumps are self-priming (to 6 ft. lift) units designed for transferring perchlorethylene and other non-flammable liquid chemicals. Handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). Units should be used only with non-abrasive, non-flammable liquids that are compatible with pump component materials.

Features :

Pump Body:
Stn. Steel
Impeller:
Stainless Steel
Shaft Seal:
Viton/SS Shaft Seal
Port Size:
1 inch x 1 inch NPT Ports.
Motor Specs :
1/3 Horsepower, 115/230 Volts, Single Phase, ODP (Open Drip Proof)., NEMA 56J Frame Electric.

Product Specs :

300 Series Investment Cast Stainless Steel Construction

Viton Mechanical Seal and O-Ring

Handles Liquids and Chemicals with Specific Gravities up to 1.6

1 Inch NPT Suction and Discharge Ports

Maximum Temperature 200 degrees F

Self-priming to 6 Ft.

Self-Cleaning, Semi-Open Impeller


Parts and Accessories for AMT model 4294-98


Impeller :

Catalog # 4294-010-00, Impeller Xss 0.33HP Mbv to -01, Stainless Steel

Price: $ 90.45

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-161-91, Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 58.05

Qty :

Can Ship : Same Day (10 in stock)


Other Parts :

Catalog # 4295-300-90, Viton Gasket/O-Ring Kit

Price: $ 14.85

Qty :

Can Ship : Same Day (2 in stock)

Applications

The AMT 429498 300 Series Investment Cast Stainless Steel Transfer pumps are designed to handle liquids and chemicals with specific gravities to 1.6. The pumps are particularly well suited to applications involving perchloroethylene and are recommended for use with nonflammable liquids.
