AMT # 4021-98 Stainless Steel Industrial Sump Pump and Motor 1/2 HP

AMT Pump 4021-98

AMT # 4021-98

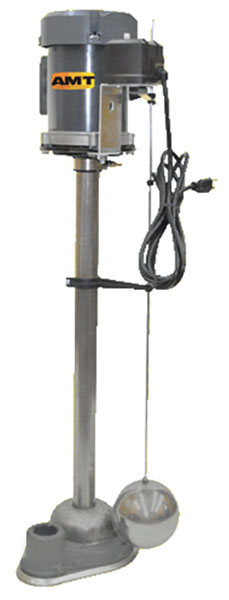

AMT catalog # 4021-98, Stainless Steel Industrial Sump Pump and Motor unit. Stainless Construction. Pump is Close Coupled to a 1/2 Horsepower, 115 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. 2 inch Discharge NPT Ports.

Price : $ 908.51

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 4021-98 is a Stainless Steel Industrial Sump Pump and Motor unit with a EPDM/EPR Shaft Seal, 2 inch Discharge NPT Ports, coupled to a 1/2 Horsepower, 115 Volts, TEFC Totally Enclosed Fan Cooled Motor. These upright sump pumps are used for drainage in industrial, residential and commercial settings. Units are completely assembled (except for float assembly) and equipped with open type impellers, TEFC motor with switch and grounding-type power cord. Handles liquids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). For use with non-flammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Stainless
Shaft Seal:
EPDM/EPR Shaft Seal
Port Size:
2 inch Discharge NPT Ports.
Motor Specs :
1/2 Horsepower, 115 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Stainless Steel Screen and Float

Semi-Open, Clog Resistant Impellers

8 Ft. 16/3 115 VAC Line Cord

Stainless Steel Shaft

Carbon Bearings

Maximum Temperature 200 degrees F

Solids Handling Design up to 3/4 Inch Diameter


Parts and Accessories for AMT model 4021-98


Impeller :

Catalog # 4021-010-98, Impeller Xss 0.50HP

Price: $ 170.10

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 523C-350-90, Motor, Kit 1/2 Horsepower 1PH, 115 Volts, 50/60 Hz Premium Efficient, Ecm Nema 48C Frame, replacement electric motor only (pump is not included)

Price: $ 615.60

Qty :

Can Ship : 2 Weeks (0 in stock)


Other Parts :

Catalog # 5460-000-00, Switch - for Sump Pump

Price: $ 103.68

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 402198 Industrial/Commercial Sump pumps are designed for heavy duty commercial applications, as well as residential use where a combination of durability and high performance is required. AMT Sump pumps are available in stainless steel, bronze and cast iron constructions with TEFC motors in 1/3 through 3/4 HP for proper pump selection in most applications. All models include stainless steel shaft, screen and float. All motors are fitted with automatic switch and an 8 foot 16/3 115 VAC line cord. Pumps require minimum sump pit of 14 Inch diameter and 24 Inch depth.
