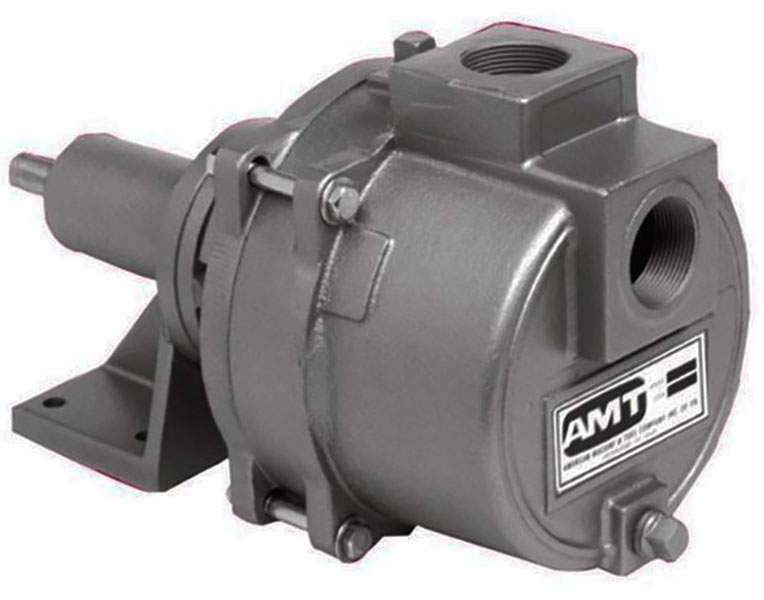

2" Cast Iron Self-Priming Solids Handling Pedestal Pumps
AMT Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
• Cast Iron Construction
• Buna-N Mechanical Seal
• 2" NPT Suction & Discharge Ports Available
• Maximum Working Pressure 75 PSI
• Maximum Temperature 180° F
• Self-priming to 20 ft.
• 3/8" Diameter Solids Handling Capability on 3160-99
• 1" Diameter Solids Handling Capability on 3931-99
• Heavy Duty Cast Iron Bearing Housing Containing (2) Precision Sealed Ball Bearings
• 3/4" Diameter CNC Machined Shaft
• 1-3/8" x 3/16" x 3/32" Keyway
AMT Self-Priming Solids Handling Pedestal pumps are designed for direct or belt drive. Specific units are available in Cast Aluminum, Cast Iron or Thermoplastic construction material. The units feature 3/8" to 2" solids handling construction and are fitted with a Cast Iron bearing housing which contains two or three precision sealed ball bearings depending on specific model. Easy cleanout design by removing casing bolts permits removal of debris without disconnecting hoses. All units are self-priming to 20 ft. AMT Self-Priming Solids Handling Pedestal pumps are reliable, cost effective and low maintenance. For use with non-flammable liquids compatible with pump component materials.
|
|
|
|
| Available
2" Cast Iron Self-Priming Solids Handling Pedestal Pumps |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
