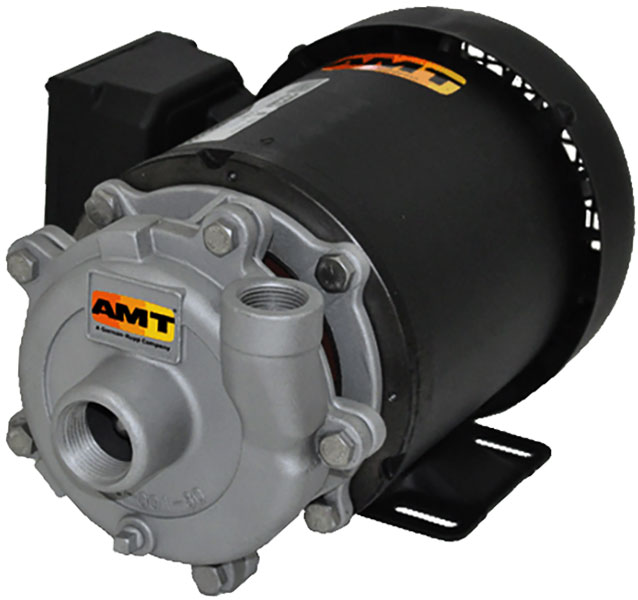

AMT # 369E-98 Stainless Steel Centrifugal Pump and Motor 2 HP

AMT Pump 369E-98

AMT # 369E-98

AMT catalog # 369E-98, Stainless Steel Centrifugal Pump and Motor unit. Stainless Steel Construction. Pump is Close Coupled to a 2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor..

Price : $ 872.29

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 369E-98 is a Stainless Steel Centrifugal Pump and Motor unit with a Viton Shaft Seal, coupled to a 2 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Pump construction is Investment Cast 300 Series Stainless Steel casing, adapter and impeller. Viton mechanical shaft seal with carbon and ceramic wear faces. O-ring casing seal. Handles liquids from 40 degrees to 200 degrees F (4 degrees to 93 degrees C). Maximum Temperature for Viton is 200 degrees F. These pumps are non-self-priming (gravity feed) units designed to handle liquid transfer, heating and cooling applications, where no suction lift is required. All models feature semi-open, clog-resistant impellers and continuous duty, 3450 RPM, 56J frame motors. Discharge port can be rotated in 90 degrees increments to accommodate specific applications. Casing working pressure to 75 psi (517 kPa). These are manual units, no controls are supplied. For use with nonflammable, nonabrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.

Features :

Pump Body:
Stainless Steel
Shaft Seal:
Viton Shaft Seal
Motor Specs :
2 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Stainless Steel Motor Shaft and Hardware

NEMA 56J TEFC Motors

NEMA Base Mounted Motor

Self-cleaning Impeller

Maximum Solids Handling Capacity: 1/8 inch Diameter

Discharge Rotates in 90 degrees Increments

Maximum Working Pressure 75 PSI


Parts and Accessories for AMT model 369E-98


Shaft Seal :

Catalog # 1640-161-91, Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 58.05

Qty :

Can Ship : Same Day (8 in stock)


Motor :

Catalog # 1627-311-00, Motor, 2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 678.78

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 369E98 Solids Handling End Suction Centrifugal pumps are designed for continuousduty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pullfromrear design for easy service without disturbing any piping. Selfcleaning impeller prevents clogging and handles solids of 1/8 Inch diameter. Pumps are close coupled to Totally Enclosed Fan Cooled motors.
