AMT # 369D-95 Cast Iron Centrifugal Pump and Motor 2 HP

AMT Pump 369D-95

AMT # 369D-95

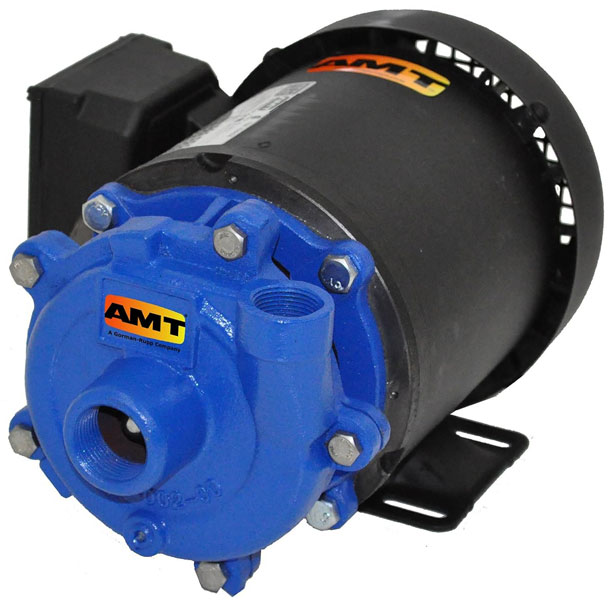

AMT catalog # 369D-95, Cast Iron Centrifugal Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 2 Horsepower, 230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1-1/4 inch Inlet x 1 inch Outlet NPT Ports.

Price : $ 621.66

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 369D-95 is a Cast Iron Centrifugal Pump and Motor unit with a Buna-N Shaft Seal, 1-1/4 inch Inlet x 1 inch Outlet NPT Ports, coupled to a 2 Horsepower, 230 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. Pump construction is Investment Cast Iron casing and adapter. Cast 300 Series Stainless Steel impeller. Buna N mechanical shaft seal with carbon and ceramic wear faces. O-ring casing seal. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). Maximum Temperature for Buna-N is 180 degrees F. These pumps are non-self-priming (gravity feed) units designed to handle liquid transfer, heating and cooling applications, where no suction lift is required. All models feature semi-open, clog-resistant impellers and continuous duty, 3450 RPM, 56J frame motors. Discharge port can be rotated in 90 degrees increments to accommodate specific applications. Casing working pressure to 75 psi (517 kPa). These are manual units, no controls are supplied. For use with nonflammable, nonabrasive liquids compatible with pump component materials.

Pumps are not self-priming and require flooded suction.

Features :

Pump Body:
Cast Iron
Shaft Seal:
Buna-N Shaft Seal
Port Size:
1-1/4 inch Inlet x 1 inch Outlet NPT Ports.
Motor Specs :
2 Horsepower, 230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Stainless Steel Motor Shaft and Hardware

NEMA 56J TEFC Motors

NEMA Base Mounted Motor

Self-cleaning Impeller

Maximum Solids Handling Capacity: 1/8 inch Diameter

Discharge Rotates in 90 degrees Increments

Maximum Working Pressure 75 PSI


Parts and Accessories for AMT model 369D-95


Shaft Seal :

Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 24.30

Qty :

Can Ship : Same Day (6 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 3690-002-09, Casing XCI 1 1/4 X 1 Mach, with 1-1/4 inch Inlet x 1 inch Outlet NPT Ports

Price: $ 132.84

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1626-305-00, Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

Price: $ 678.78

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 369D95 Solids Handling End Suction Centrifugal pumps are designed for continuousduty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pullfromrear design for easy service without disturbing any piping. Selfcleaning impeller prevents clogging and handles solids of 1/8 Inch diameter. Pumps are close coupled to Totally Enclosed Fan Cooled motors.
