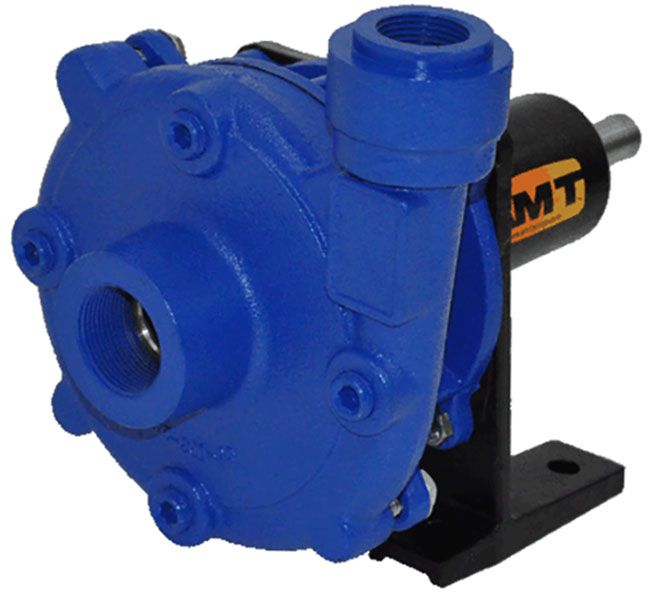

AMT Pump # 3694-95 - Cast Iron Pedestal Pump

The AMT Pump # 3694-95 is an AMT Pedestal pump end only, less motor # 3694-95 - Cast Iron Pedestal Pedestal pump end only, less motor, with Cast Iron construction, Stainless Steel impeller, Buna shaft seal, 1-1/4 inch Inlet port, 1 inch Discharge port, bare shafted Pedestal pump end only on a bearing Pedestal without a motor. This Straight Centrifugal Pedestal pump is designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. This pump is designed to handle liquids with solids contents or dissolved solids and debris up to 7 percent of liquid volume. Discharge port rotates 360 degrees in 90 degree increments. This pump incorporates a mechanical shaft seal and O-ring casing seal. Pumps are cast iron with cast 316 stainless steel impeller and bronze pedestal. Shaft seal is stainless steel, carbon, ceramic and Buna N elastomers. Handle liquids from 40 degrees F to 180 degrees F (4 degrees C to 82 degrees C). ONLY for use with NON-flammable, non-abrasive liquids compatible with pump component materials.
WEIGHT : The AMT 3694-95 weighs 13 Lbs.
