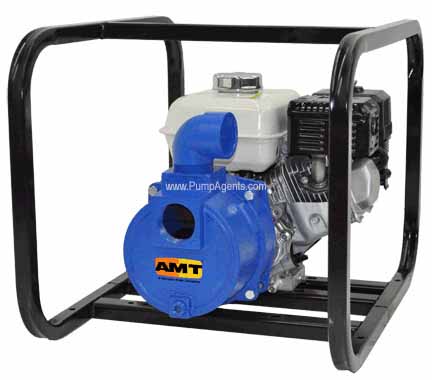

AMT # 316F-D5 Cast Iron Dredging Pump and Engine 5 HP
AMT # 316F-D5
AMT catalog # 316F-D5, Dredging Pump and Motor unit. Cast Iron Construction with High Chromium Stainless Steel Impeller and Viton S/C Shaft Seal. Pump is Close Coupled to a 5 Horsepower, Hatz Diesel 1B20 Engine Motor. 2 Inch NPT Ports.
Price : $ 3931.66
Product Information :
Parts Page (click here)
Product Manual PDF (view)The AMT 316F-D5 is a Cast Iron Dredging Pump and Engine unit with a High Chromium Stainless Steel Impeller, Viton S/C Shaft Seal, 2 Inch NPT Ports, coupled to a 5 Horsepower, Hatz Diesel 1B20 Engine. These dredging pumps are abrasion-resistant, heavy duty, centrifugal, self-priming (to 20 ft. lift), portable units shipped completely assembled and mounted. Pump is equipped with abrasion resistant high chromium steel, semi-open, solids handling impeller, replaceable volute and wearplate. A built-in check valve assists in priming and a silicon-carbide mechanical shaft seal resists wear and leaking. Simple four bolt casing design for easy cleanout and wear part replacement. Handles liquids from 40 degrees to 160 degrees F (4 degrees to 71 degrees C). This pump is for use with nonflammable liquids compatible with pump component materials.
Features :
Product Specs :
High Chromium Stainless Steel Internal Components Resist Wear from Sea Water Mixed with Abrasive Sand
Silicon Carbide/Buna-N Mechanical Seal Resists Abrasives and Extends Seal Life
Heavy Duty Cast Iron Casing and Adapter Ensures Durability for Severe Service Conditions
O-ring Casing Seal for Ease of Service and Cleaning
Maximum Working Pressure 75 PSI
Maximum Temperature 180 degrees F
Dual Volute Design for Hydraulic Balance
Self-Primes to 10 Ft. in 1 Minute with Maximum Lift of 20 Ft.
NPT Pipe Nipples, Discharge Elbow and Suction Strainer Included
Parts and Accessories for AMT model 316F-D5
Impeller :
Catalog # 2760-010-01, Impeller 5.0HP Gf Xss Mach, High Chromium Stainless Steel
Price: $ 155.52
Shaft Seal :
Catalog # 1641-166-91, Mechanical Seal, Viton/Silicon Carbide, Type 16, size 3/4 Inch
Price: $ 121.50
Casing frozen or cracked ? New Pump Casing :
Catalog # 2111-001-02, Casing XCI 396 Machine By Amt to 2 Inch NPT, Cast Iron
Price: $ 362.88
Motor :
Catalog # 1630-020-90, Hatz 1B20 Diesel Engine 5/8 Inch Threaded Shaft Kit
Price: $ 4404.78
Applications
The AMT 316FD5 Engine Driven Dredging Pump is designed for pumping sea water and fresh water containing up to 25 percent sand, debris and other abrasive particles. This unit can be used for other marine applications including dredging, pile driving, pier maintenance, emergency bilging and wash down. This pump is constructed of wear resistant high chromium stainless steel internal components that are designed to last for over 500 hours of service with regular maintenance of rinsing pump after each use. The high chromium stainless steel components are investment cast and CNC machined for maximum efficiency, performance and quality. Dual volute design reduces radial load on engine. The 4bolt casing design and removable type volute offers simple maintenance and fast cleanout of the pump
