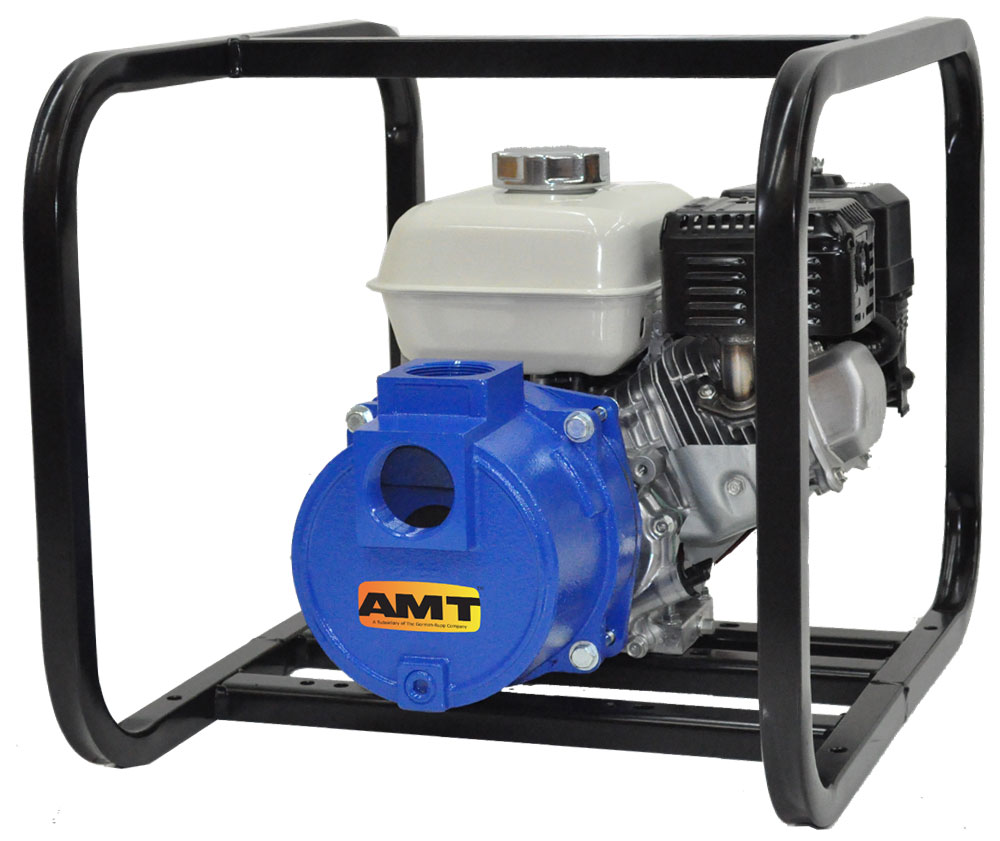

AMT # 316F-95 Cast Iron Self-Priming Dredging Pump and Engine 5 HP

AMT Pump 316F-95

AMT # 316F-95

AMT catalog # 316F-95, Self-Priming Dredging Pump and Motor unit. Cast Iron Construction with High Chromium Stainless Steel Impeller and Viton S/C Shaft Seal. Pump is Close Coupled to a 5 Horsepower, Honda GX160 Engine Motor. 2 Inch NPT Ports.

Price : $ 1494.93

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 316F-95 is a Cast Iron Self-Priming Dredging Pump and Engine unit with a High Chromium Stainless Steel Impeller, Viton S/C Shaft Seal, 2 Inch NPT Ports, coupled to a 5 Horsepower, Honda GX160 Engine. These dredging pumps are abrasion-resistant, heavy duty, centrifugal, self-priming (to 20 ft. lift), portable units shipped completely assembled and mounted. Pump is equipped with abrasion resistant high chromium steel, semi-open, solids handling impeller, replaceable volute and wearplate. A built-in check valve assists in priming and a silicon-carbide mechanical shaft seal resists wear and leaking. Simple four bolt casing design for easy cleanout and wear part replacement. Handles liquids from 40 degrees to 160 degrees F (4 degrees to 71 degrees C). This pump is for use with nonflammable liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron
Impeller:
High Chromium Stainless Steel
Shaft Seal:
Viton S/C Shaft Seal
Port Size:
2 Inch NPT Ports.
Motor Specs :
5 Horsepower, Honda GX160 Engine.

Product Specs :

High Chromium Stainless Steel Internal Components Resist Wear from Sea Water Mixed with Abrasive Sand

Silicon Carbide/Buna-N Mechanical Seal Resists Abrasives and Extends Seal Life

Heavy Duty Cast Iron Casing and Adapter Ensures Durability for Severe Service Conditions

O-ring Casing Seal for Ease of Service and Cleaning

Maximum Working Pressure 75 PSI

Maximum Temperature 180 degrees F

Dual Volute Design for Hydraulic Balance

Self-Primes to 10 Ft. in 1 Minute with Maximum Lift of 20 Ft.

NPT Pipe Nipples, Discharge Elbow and Suction Strainer Included


Parts and Accessories for AMT model 316F-95


Impeller :

Catalog # 2760-010-01, Impeller 5.0HP Gf Xss Mach, High Chromium Stainless Steel

Price: $ 155.52

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1641-166-91, Mechanical Seal, Viton/Silicon Carbide, Type 16, size 3/4 Inch

Price: $ 121.50

Qty :

Can Ship : 2 Weeks (0 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 2111-001-02, Casing XCI 396 Machine By Amt to 2 Inch NPT, Cast Iron

Price: $ 362.88

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1639-036-00, Honda GX160 Recoil Start 5/8 Threaded Shaft Ohv Engine

Price: $ 1074.06

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 316F95 Engine Driven Dredging Pump is designed for pumping sea water and fresh water containing up to 25 percent sand, debris and other abrasive particles. This unit can be used for other marine applications including dredging, pile driving, pier maintenance, emergency bilging and wash down. This pump is constructed of wear resistant high chromium stainless steel internal components that are designed to last for over 500 hours of service with regular maintenance of rinsing pump after each use. The high chromium stainless steel components are investment cast and CNC machined for maximum efficiency, performance and quality. Dual volute design reduces radial load on engine. The 4bolt casing design and removable type volute offers simple maintenance and fast cleanout of the pump
