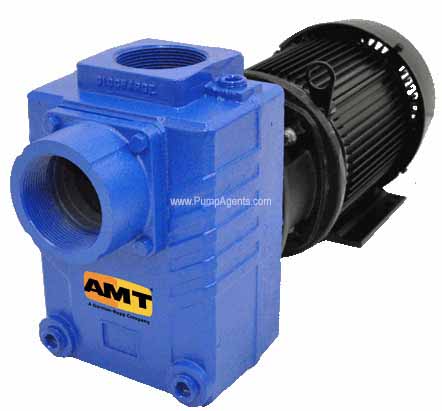

3" Cast Iron Self-priming Centrifugal Pumps
AMT Pumps
| FEATURES
|
|
|
|
|
|
APPLICATIONS |
• Cast Iron Construction with Bronze Impeller
• Buna-N Mechanical Seal, Flapper/Check Valve and O-Ring
• Optional Viton® Mechanical Seal, Flapper/Check Valve and O-Ring Available
• Optional Silicon Carbide Seal Available
• 3" NPT Suction and Discharge Ports
• Solids Handling up to 3/8" Diameter
• Dual Volute Design
• Maximum Working Pressure 125 PSI
• Maximum Temperature 180° F
• Maximum Flow 375 GPM
• Maximum Head 110 ft.
• Self-priming to 20 ft.
• Self-cleaning, Semi-open Impeller
• 3 to 7-1/2 HP Three Phase TEFC Motors, 3 & 5 HP Single Phase TEFC Motors
AMT Self-Priming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with self-cleaning, semi-open bronze impellers which can handle 3/8" diameter semisolids. Built-in check valves for fast priming are standard on all units. Self-priming to 20 Ft. Fill and drain plugs for easy installation and servicing. AMT Self-Priming Cast Iron Centrifugal pumps are reliable, cost effective and low maintenance. Many are readily available “Off-the-Shelf” for fast 24 hour shipment. For use with nonflammable liquids compatible with pump component materials.
|
|
|
|
| Available
3" Cast Iron Self-priming Centrifugal Pumps |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
