AMT # 2874-95 Cast Iron Self-Priming Centrifugal Pump and Motor 3 HP

AMT Pump 2874-95

AMT # 2874-95

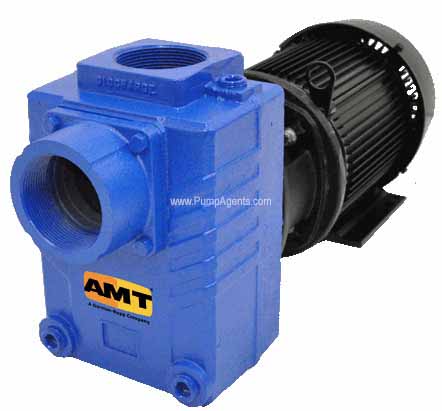

AMT catalog # 2874-95, Self-Priming Centrifugal Pump and Motor unit. Cast Iron Construction with Stainless Steel Impeller and Buna-N/SS Shaft Seal. Pump is Close Coupled to a 3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 182JM Frame Electric Motor. 3 inch x 3 inch NPT Ports.

Price : $ 1569.07

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 2874-95 is a Cast Iron Self-Priming Centrifugal Pump and Motor unit with a Stainless Steel Impeller, Buna-N/SS Shaft Seal, 3 inch x 3 inch NPT Ports, coupled to a 3 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 182JM frame electric Motor. These centrifugal pumps are self-priming (to 20 ft. lift) units designed for high volume liquid transfer irrigation, de-watering, lawn sprinkling, etc. They can also accommodate semi-solids (up to 3/8 diameter), sediment laden liquids and liquids with entrained air or gases. Casing working pressure to 125 psi (862 kPa). The units are equipped with a cast iron pump casing designed with a full dual volute, clog resistant semi-open stainless steel impeller and a cast iron adapter. Units are equipped with flapper valves to ensure a positive prime. A mechanical seal isolates the motor from the liquid in the pump casing. The units are coupled to 3450 RPM, totally enclosed fan cooled motors. All units are manual models, no controls are supplied. For use with nonflammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron
Impeller:
Stainless Steel
Shaft Seal:
Buna-N/SS Shaft Seal
Port Size:
3 inch x 3 inch NPT Ports.
Motor Specs :
3 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 182JM Frame Electric.

Product Specs :

Product Specs :

Cast Iron Construction with Stainless Steel Impeller

Buna-N Mechanical Seal, Check Valve and O-Ring

Optional Silicon Carbide Seal Available

3 Inch NPT Suction and Discharge Ports

Maximum Solids Handling 3/8˝

Maximum Temperature 180 degrees F

Self-Priming to 20 Ft.

Self-Cleaning, Semi-Open Impeller


Parts and Accessories for AMT model 2874-95


Impeller :

Catalog # 2874-013-90, 3.0HP Xss Impeller and O-Ring Kit, Stainless Steel

Price: $ 330.48

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-163-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch

Price: $ 44.55

Qty :

Can Ship : Same Day (5 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 1543-003-01, 287EXCI Casing Mach 3 Inch NPT and for Suction Plate, Cast Iron

Price: $ 616.95

Qty :

Can Ship : Same Day (1 in stock)


Motor :

Catalog # 1627-351-00, Motor, 3 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 182JM Frame, replacement electric motor only (pump is not included)

Price: $ 1101.60

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 287495 SelfPriming Cast Iron Centrifugal pumps are designed for a broad range of high capacity applications, including dewatering, liquid transfer, circulation, drainage and irrigation. Dual volute design reduces radial load on motor. The centerline discharge feature is specifically designed to prevent vapor binding and makes for convenient piping connections. All models are fitted with selfcleaning, semiopen stainless steel impeller, which can handle 3/8 Inch diameter semisolids. Builtin check valves for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing.
