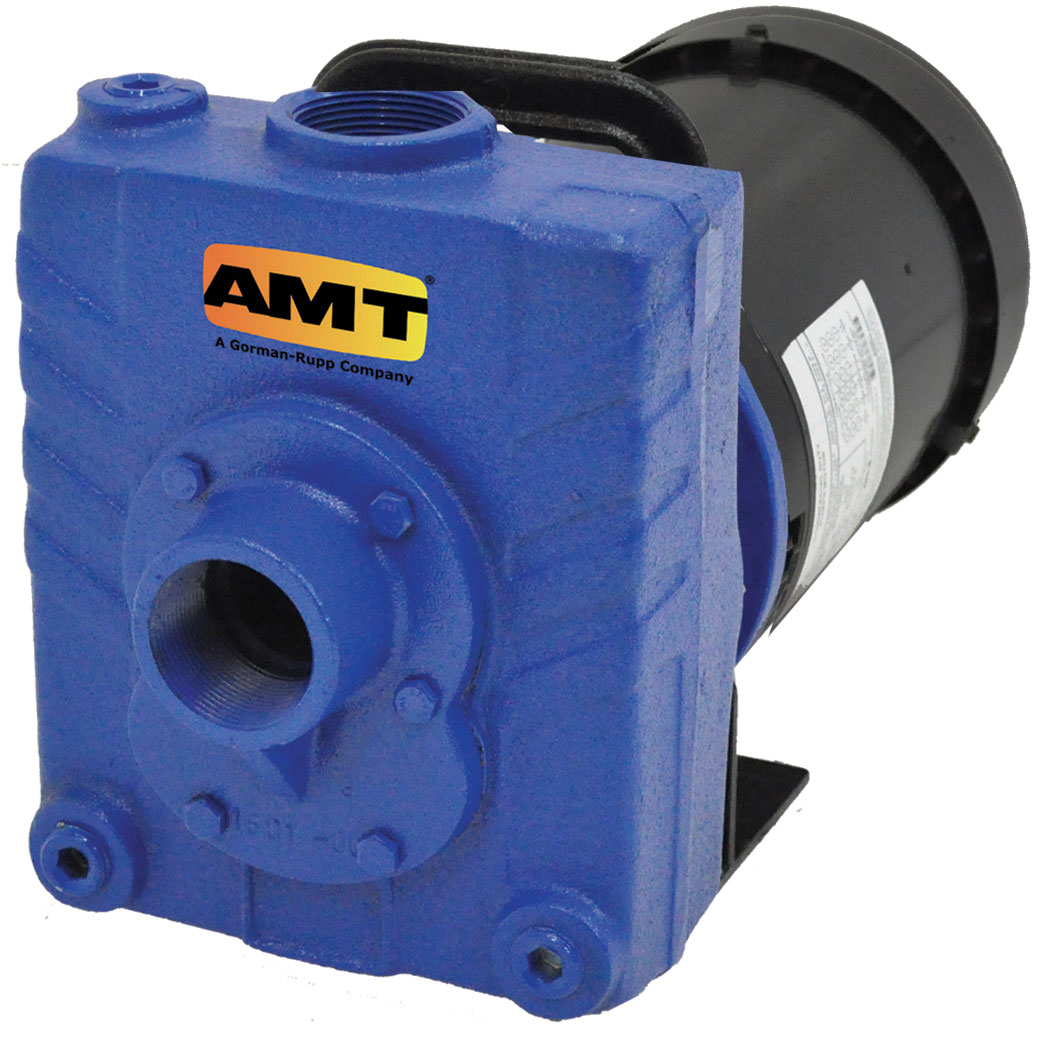

AMT # 282K-95 Cast Iron Self-Priming Centrifugal Pump and Motor 1 HP

AMT Pump 282K-95

AMT # 282K-95

AMT catalog # 282K-95, Self-Priming Centrifugal Pump and Motor unit. Cast Iron Construction. Pump is Close Coupled to a 1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled), NEMA 56J Frame Electric Motor. 1-1/2 inch x 1-1/2 inch NPT Ports.

Price : $ 706.84

Qty :

4 Weeks (out of stock)

Click Here for PARTS



Product Information :

The AMT 282K-95 is a Cast Iron Self-Priming Centrifugal Pump and Motor unit with a Buna-N Shaft Seal, 1-1/2 inch x 1-1/2 inch NPT Ports, coupled to a 1 Horsepower, 230/460 Volts, TEFC Totally Enclosed Fan Cooled, NEMA 56J frame electric Motor. These centrifugal pumps are self-priming (to 20 ft. lift) units designed for high volume liquid transfer, irrigation, dewatering, lawn sprinkling, etc. These pumps can also accommodate semi-solids (up to 3/8 dia.), sediment laden liquids, and liquids with entrained air or gases. Units are constructed of cast iron and include Buna elastomers (Viton elastomers optional, contact factory for availability). They are direct coupled to NEMA 56J frame, 3450 RPM motors which require field wiring, no controls are supplied. Each pump is equipped with a flapper valve to shorten re-prime time after initially filling casing with liquid. Handles liquids from 40 degrees to 180 degrees F (4 degrees to 82 degrees C). For use with nonflammable, non-abrasive liquids compatible with pump component materials.

Features :

Pump Body:
Cast Iron
Shaft Seal:
Buna-N Shaft Seal
Port Size:
1-1/2 inch x 1-1/2 inch NPT Ports.
Motor Specs :
1 Horsepower, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled)., NEMA 56J Frame Electric.

Product Specs :

Cast Iron Construction with Buna-N Seals

Handles 3/8 Inch Diameter Semi-solids

NEMA 56J Motors with Stainless Steel Shaft

Maximum Working Pressure 75 PSI

Self-primes to 20 Ft.

Self-cleaning, Clog Resistant Impeller

Steel Base and Handle Included

Dual Volute Design


Parts and Accessories for AMT model 282K-95


Seal Kit :

Catalog # 2820-304-95, Buna Seal and Gasket Rebuild Kit

Price: $ 53.46

Qty :

Can Ship : 2 Weeks (0 in stock)


Impeller :

Catalog # 2820-011-04, Impeller XCI 0.75HP ODP and 1.0HP TEFC 3PH Mach

Price: $ 81.00

Qty :

Can Ship : 2 Weeks (0 in stock)


Shaft Seal :

Catalog # 1640-161-90, Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch

Price: $ 24.30

Qty :

Can Ship : Same Day (6 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 2820-001-B5, Casing Kit XCI withBuna Flapper Valve for Parts, Cast Iron, with 1-1/2 inch x 1-1/2 inch NPT Ports

Price: $ 372.60

Qty :

Can Ship : 2 Weeks (0 in stock)


Motor :

Catalog # 1627-309-00, Motor, 1 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)

Price: $ 529.74

Qty :

Can Ship : 2 Weeks (0 in stock)

Applications

The AMT 282K95 SelfPriming Centrifugal pumps are designed for industrial and commercial applications requiring high volume liquid transfer, waste water drainage and processing. These pumps feature a selfcleaning clog resistant impeller capable of handling up to 3/8 Inch diameter semisolids. Builtin flapper/check valve enables consistent selfpriming to 20 feet. Dual volute design reduces radial load on motor.
